ANIUXIAOGE TTS-55 Laser Engraver, 5.5W High Accuracy Laser Cutter Machine with 300x300mm Working Area, Compressed Spot CNC Carving DIY Laser Engraving for Wood and Metal

Price: $593.66
(as of Jan 15,2023 15:37:27 UTC – Details)

Machine parameters:
Model: TTS55
Machine Weight: 3kg
Engraving Range: 300 * 300mm
Laser Wavelength: 445 ± 5nm
Engraving Accuracy: 0.1mm
Engraving Speed: 10000mm / min
Software Support System: MAC, Windows
Machine Material: Aluminum Profile + Plastic Parts
Power Supply: 12V 4A DC
Control Board: LTS esp32 Motherboard (32bit)
Laser Power: 5.5w
Input Power: 40w
Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc
Supporting software: Lasergrbl (Windows system), Lightburn (General)
Power type: European standard / American Standard (Optional)
Languages Supported By The Software: Chinese, English, Italian, French and German
Working Environment: Temperature 5-40 ℃, Humidity 20-60%
Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)
Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc
Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving

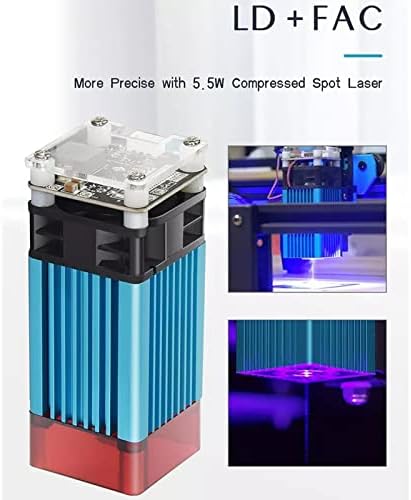

Latest Laser Beam Shaping Technology: TTS-55 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.
32-bit Motherboard: The motherboard adopts 32-bit dual-core MCU, which has a faster processing speed, and the engraving speed can reach 10000mm/min. Laser can engrave online and TF card offline engraving. Due to the built-in WIFI module, you can also use the mobile phone App and computer WEB for engraving.
Fast focus design: Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use. Square measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.
Software Compatibility: TTS-55 series engraving machines are compatible with most engraving software. For example, free software: LaserGRBL (for Windows), paid software: Lightburn (for Windows, Mac), mobile app: MKSLaser (for Android and IOS system), can be downloaded from the mobile store.

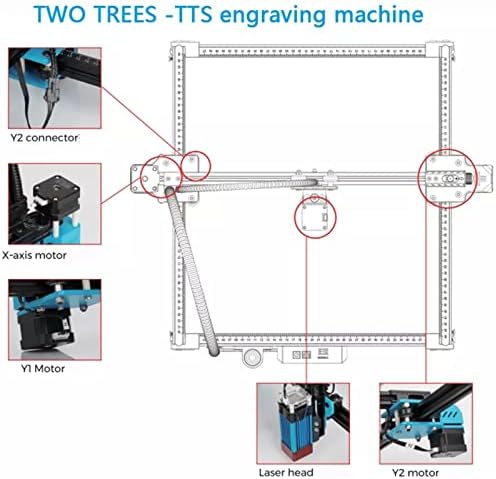

New Upgrades: Twotrees TTS-55 is an upgraded version of TT-5.5S. TTS-55 aluminum profile added digital scale, upgraded to32-bit motherboard. Add power switch to motherboard. Magnetic laser protection covers, CNC Z-axis lifting devices, Cable management using bellows, Multi-grade metal positioning posts, etc. If you have any questions, please contact us.
